Mix BATCH

Continuous batch production for ice cream mix

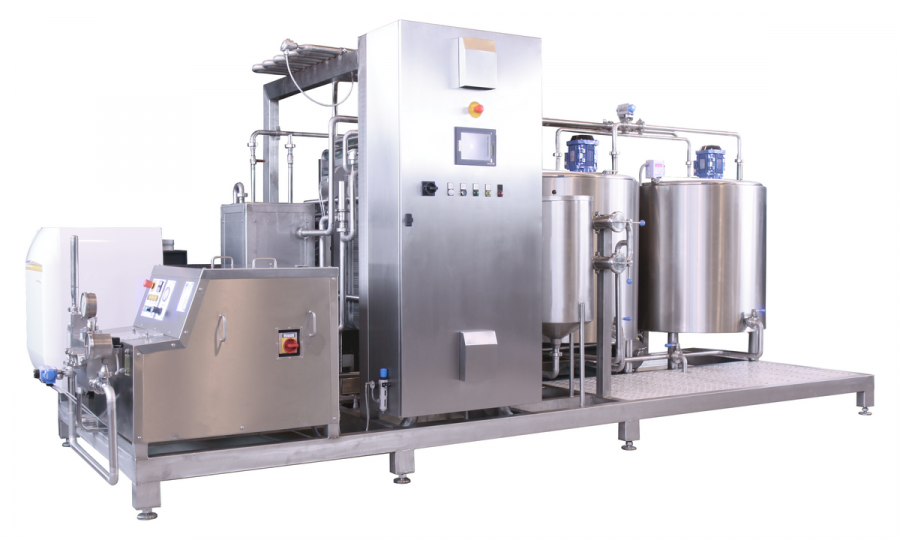

MIX BATCH machines are continuous cycle plants for batch pasteurizing, homogenizing and cooling of ice-cream mix with a production capacity from 250 to 1200 L/h. MIX BATCH has the compact and hygienic complete stainless steel design. The space requirements are minimalised by means of optimal layout of the plant. All parts and components are easy to inspect and maintain.

Features

• mixing tank (2 pcs), speed stirrer, temperature indication
• mix filter
• centrifugal pump to deliver the mix to the heat exchanger
• plate heat exchanger, 2 sections

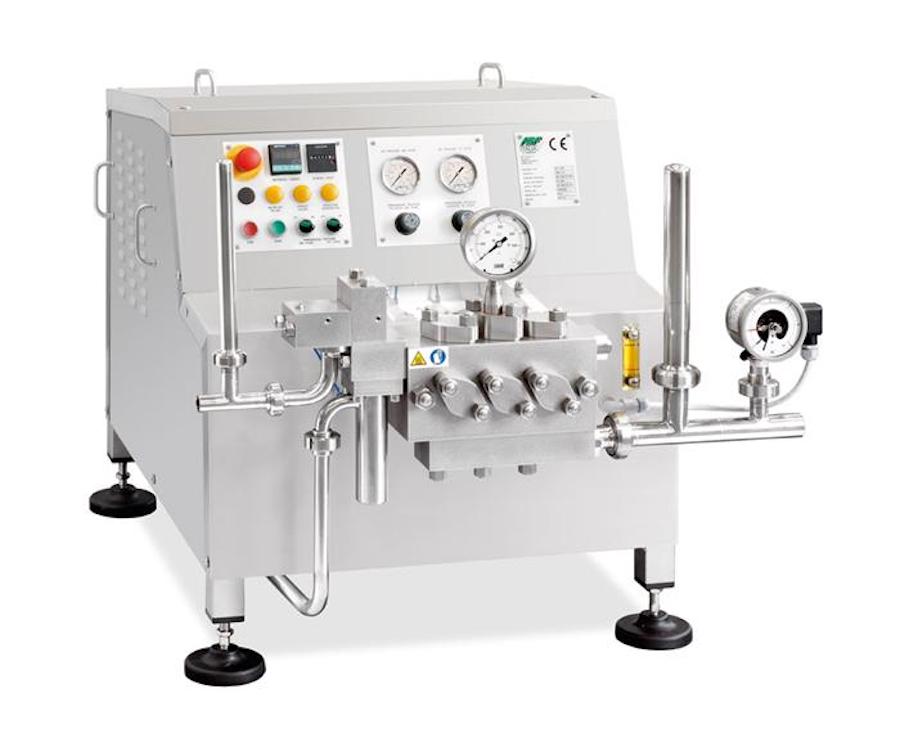

• homogenizer with pumping pistons, working pressure 180 bar, single stage (double stage as optional)
• liter counter to measure amount of water/milk going to mixing tank according to the recipe
• boiler (gas/electric) supply hot water for the pasteurizing section of plate heat exchanger
• centrifugal pump to deliver the hot water to the heat exchanger
• control panel with all electrical components
• PLC control, automation and optimisation of the process

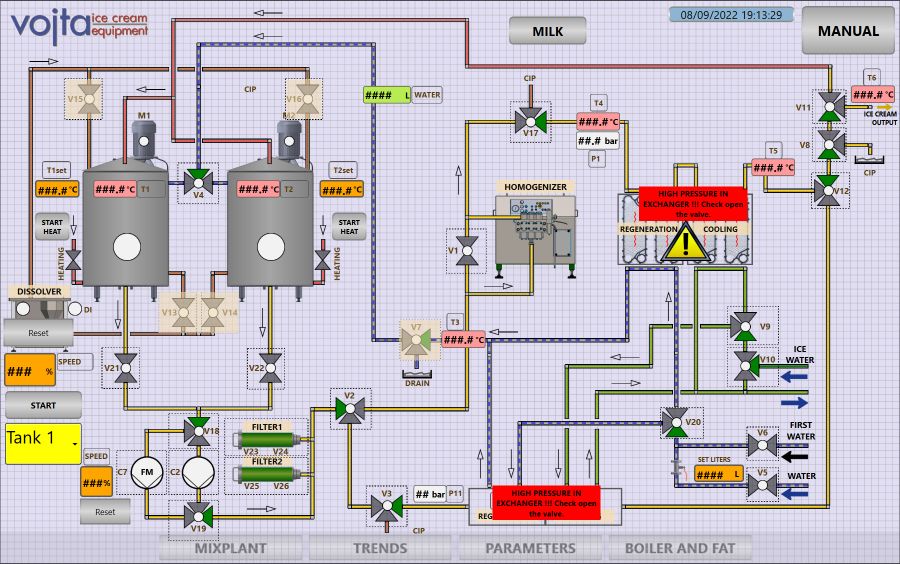

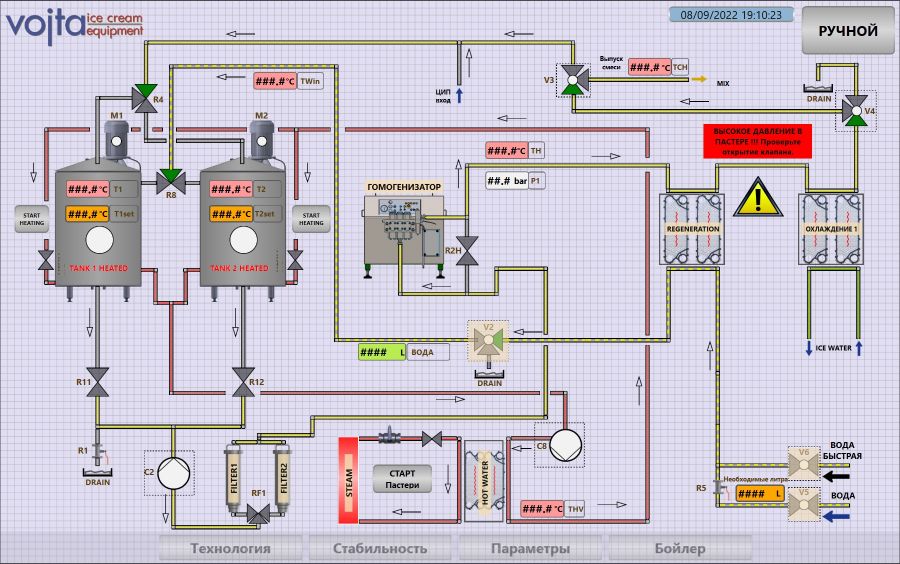

• visualization of the process, touch screen with temperatures and liter counter display
• temperature registration

Optional accessories

• special tube exchanger for viscous, special mixes, sorbet with fruit pulp and seeds (up to 55% dry ingredients)
• special execution for very high solid mixes (italian gelato type)
• powder feeder for dry ingredients / dissolver
• weighing system
• fat melting tank + fat dosing system
• chilled water tank
• second homogenizing stage
• hot water storage tank for improved pasteurising stability
• SCADA export of data from plant
• CIP plant
