Mix HTST

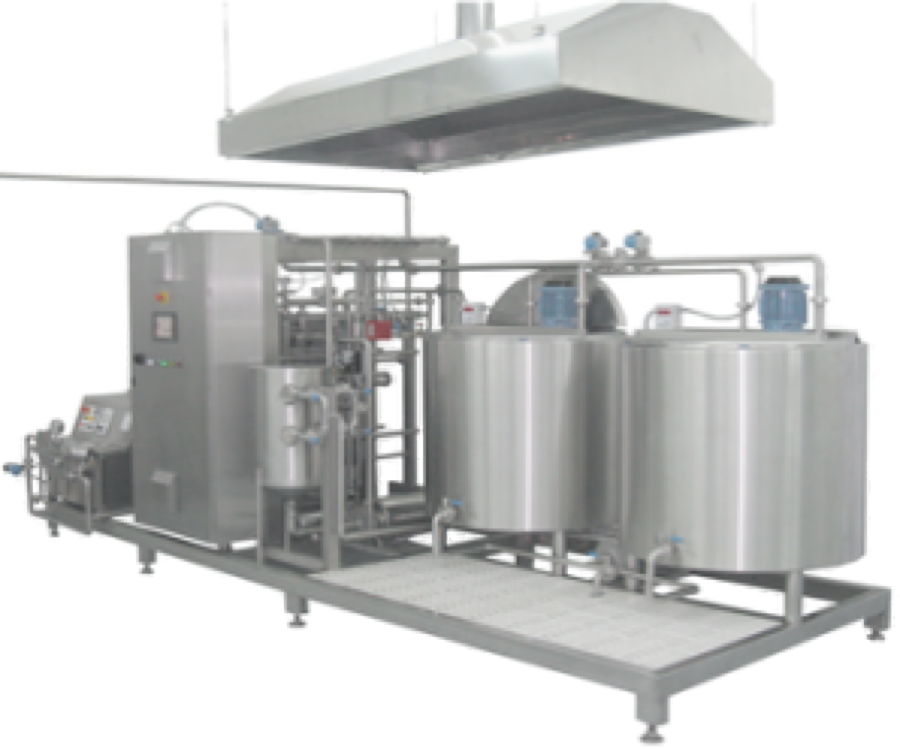

MIX HTST machines are continuous closed cycle plants for instant pasteurizing, homogenizing and cooling of ice-cream mix with a production capacity from 600 to 5000 L/h.
The great advantage of HTST system is energy recuperation - tap water (milk) cools down the outgoing mix and is heated up - thus the energy requirements are significally reduced. Savings are 70-72% compared to the systems without recuperation.
Features
- plants tailored to individual requirements of each client

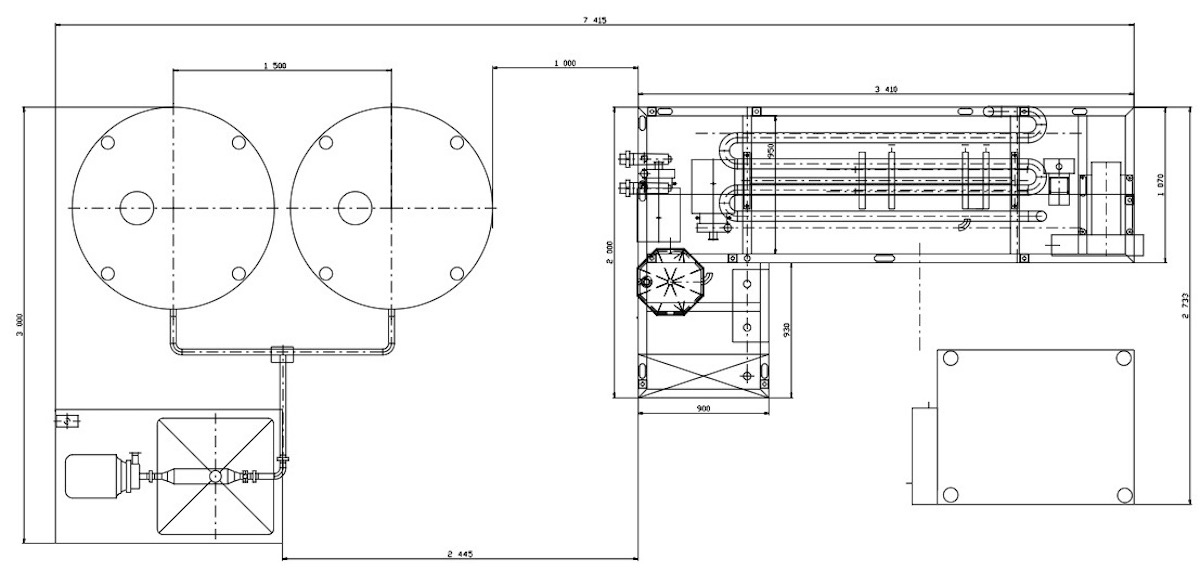

- flexible layout to fit in existent factory space
- compact and hygienic stainless steel design
- components of world leading manufacturers
- wide range of accessories
- low energy costs of the plant
- various levels of automation
- energy effective
- easy to operate
- all parts and components are easy to inspect and maintain

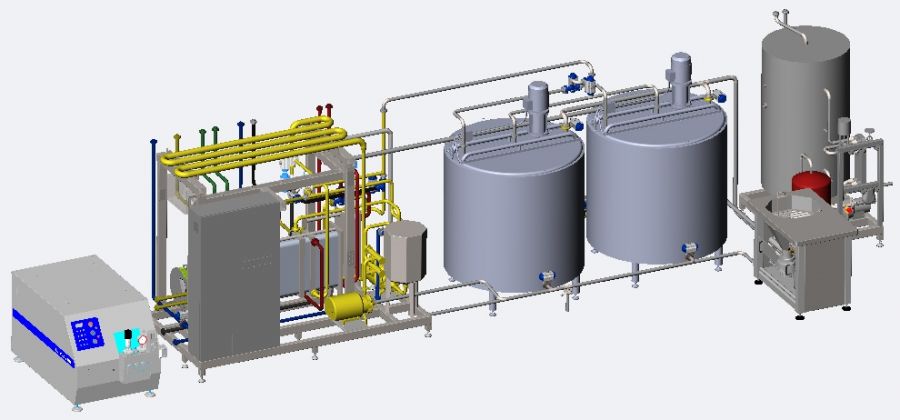

The standard plant
- mixing tank (2 pcs), double speed stirrer, temperature indication
- mix filter
- centrifugal pump to deliver the mix to the balance tank
- balance tank with floater
- centrifugal pump to deliver the mix to the heat exchanger

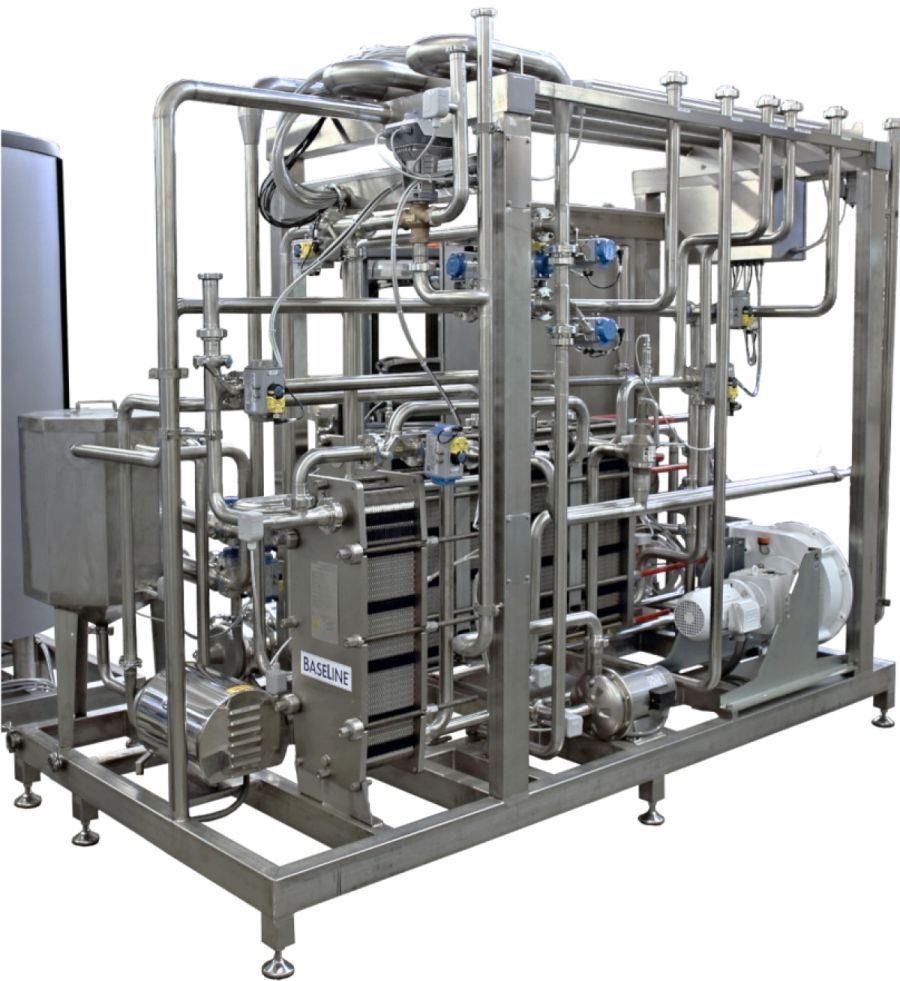

- plate heat exchanger, 4 section
- homogenizer with pumping pistons, working pressure 180 bar, single stage (double stage as optional)
- tubular holding unit, keep same temperature for 60 seconds
- liter counter to measure amount of water/milk going to mixing tank according to the recipe
- boiler (gas/electric) supply hot water for the pasteurizing section of plate heat exchanger
- centrifugal pump to deliver the hot water to the heat exchanger
- control panel with all electricals
- PLC control, automation and optimisation of the process

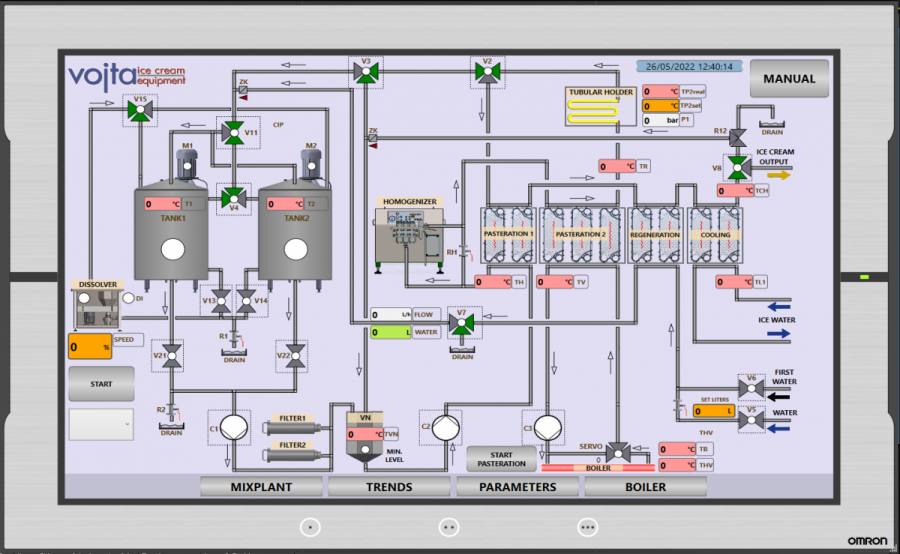

- visualization of the process, touch screen with temperatures display, liter counter display,
- temperature registration
Optional accessories
- high pressure plate exchanger for viscous, special mixes (up to 44% dry ingredients)
- powder feeder for dry ingredients / dissolver
- weighing system
- fat melting tank + fat dosing system
- chilled water tank
- second homogenizing stage
- special execution for very high solid mixes
- hot water storage tank for improved pasteurising stability
- extra PHE for first batch
- SCADA export of data from plant
- CIP plant
