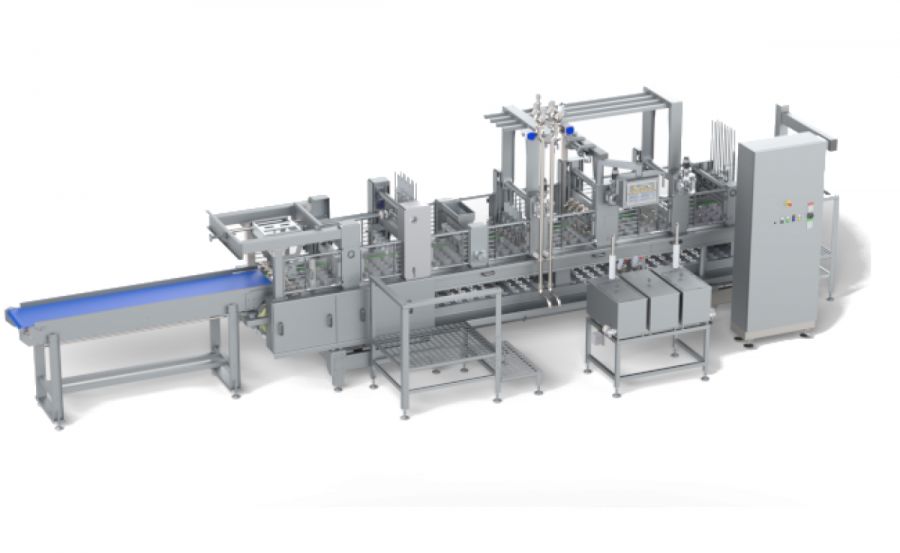

Linear fillers LF are automatic filling machines for production of cups and cones.
LF fillers are manufactured to the highest technical level, and meets current requirements for efficiency, hygiene, and safety. The machine is characterized by high flexibility, comfortable working height and great usability and can be operated from both sides. It is easy to clean and inspect.
Capacities from max. 5 000 pcs/hour (LF-04) to max. 18 000 pcs/hour (LF-09) are available.
Linear fillers LF can be linked to any type of hardening tunnel (HT) to complete the entire production process. This option is basically avaible for all type of ARCTIC hardening tunnels, also possible to pair with other brands of hardening tunnels on request.
- strong stainless steel frame with adjustable legs
- operator panel 9“ LCD touch screen
- complete machine settings under recipes stored
- set of lamellas with 4/6/8/9 positions
- step-by-step pneumatic/servo lamella driving unit
- electronic control panel in IP 65 protection rate with electric elements and control
- automatic start procedure
- low service and maintenance costs
- cups production up to 18 000pcs/h
- wafer cups production up to 18 000pcs/h
- aluminum sleeved cone production up to 18 000pcs/h
- topink vats with high pressure volumetric pumps
- large variety of filling stations, decoration units, lidding units
- vertical extrusion cutting station/s
- heat sealing stations
- airless choco spray / high pressure spraying
- top decoration with chocolate or syrup
- chocolate disk on top of ice cream
- volumetric dosage of dry ingredients
- multiple filling stations

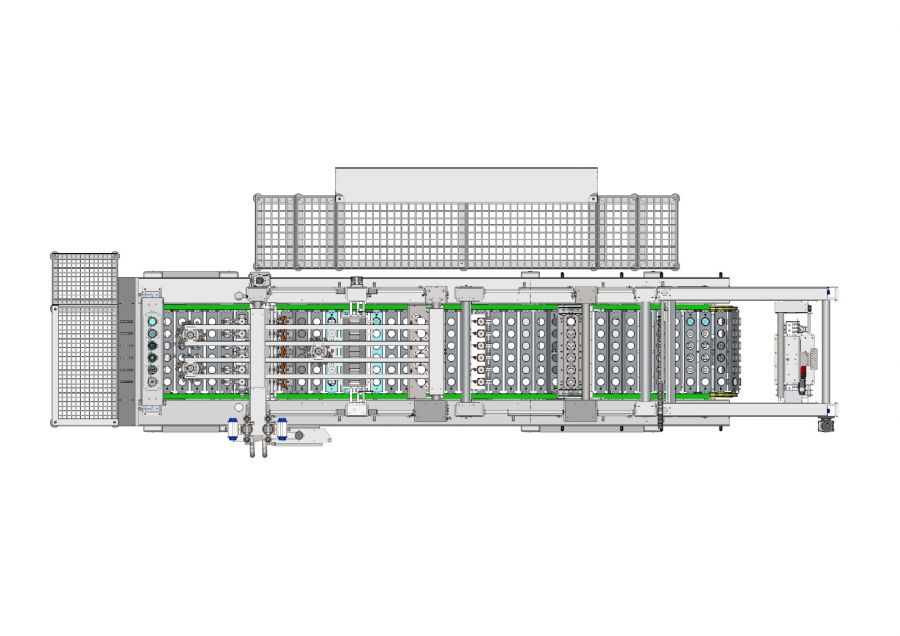

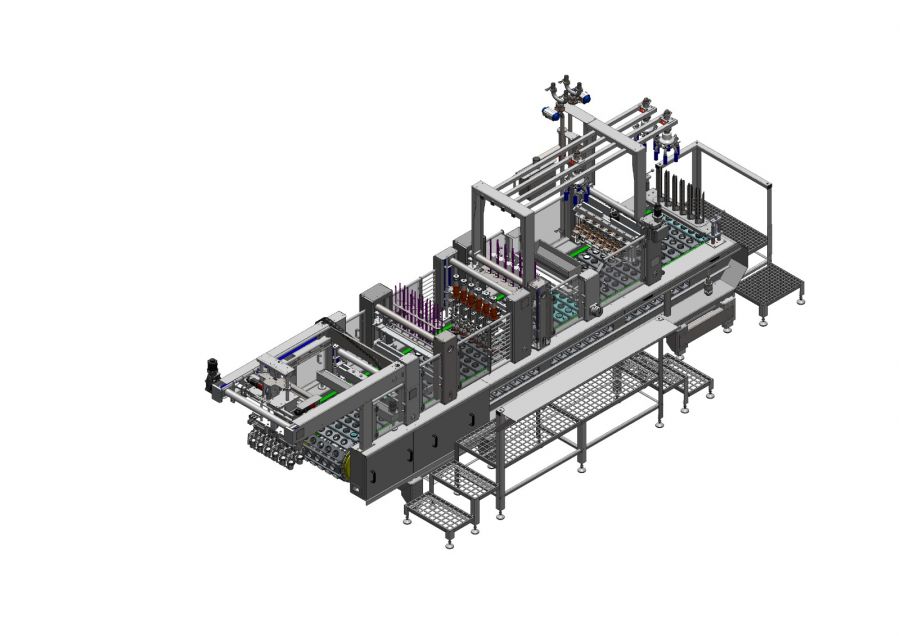

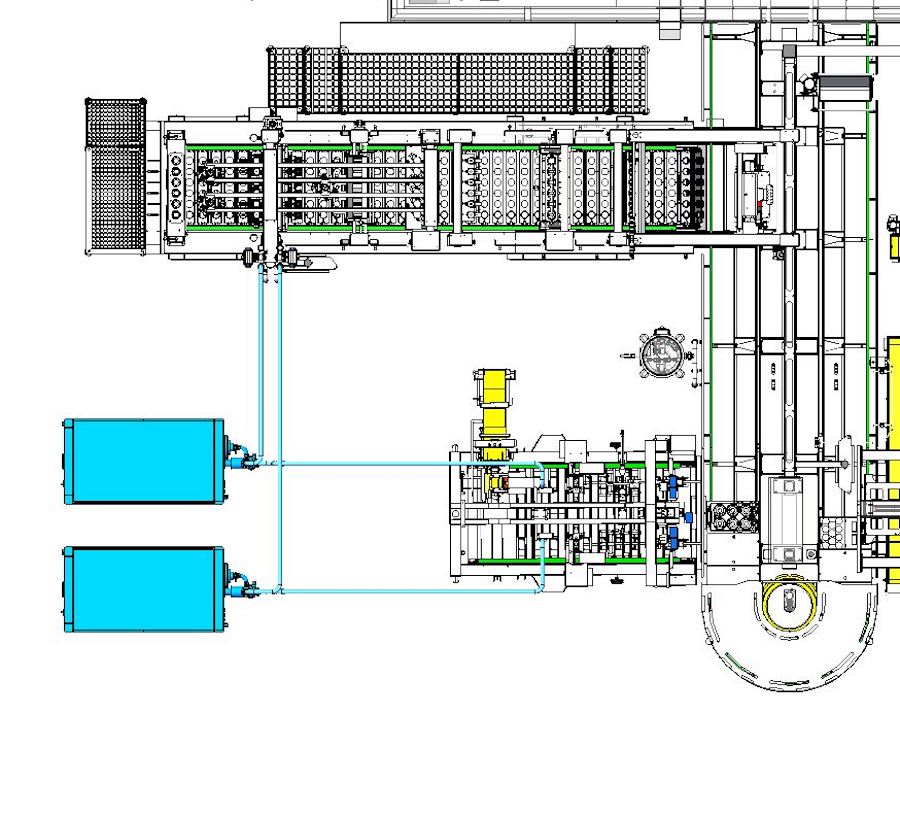

- robotic transfer of finished products to hardening tunnel
