Multi-lane Wrappers

MLW

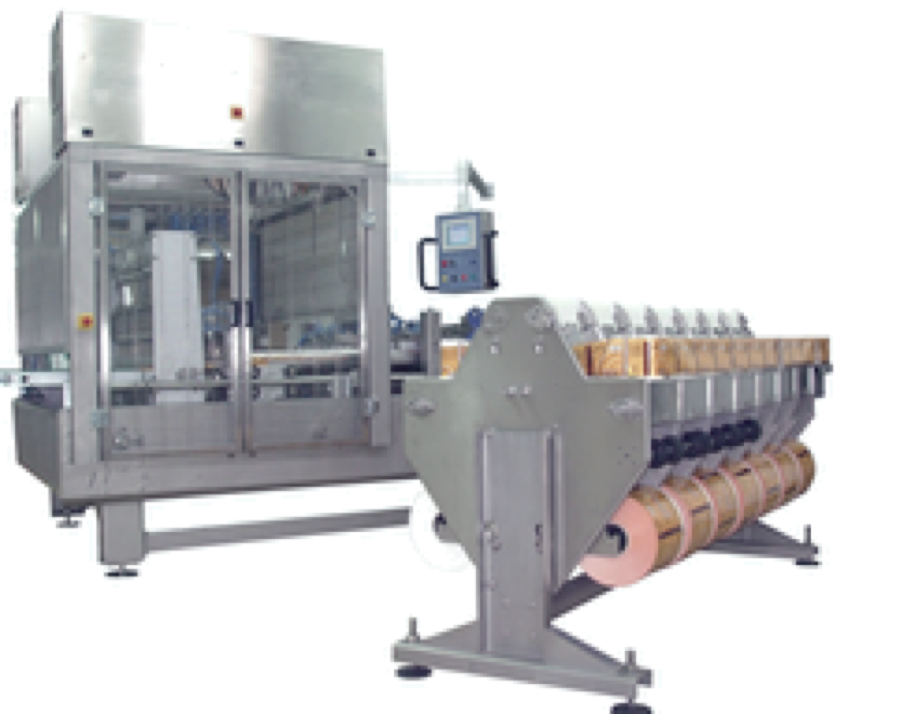

MLW Multi-lane wrapping systems reverse wrappers

MLW Multi-lane wrapping systems are mainly used for wrapping ice cream, but can be also used for chocolate and confectionery products. Advantage of multi-lane wrappers is gentle handling of product and high operational speeds. Recommended for capacities higher than 16.000 – 20.000 pcs/hour.

  • combine high capacities with gentle handling
  • enhanced hygiene – product placed directly on foil
  • from  6 up to 12 rows
  • capacity up to 27.000 pcs/hour

Standard features

  • PIP – picture in place
  • hot and cold sealing
  • ink jet data coding
  • outlet conveyor for wrapped product discharge
W800

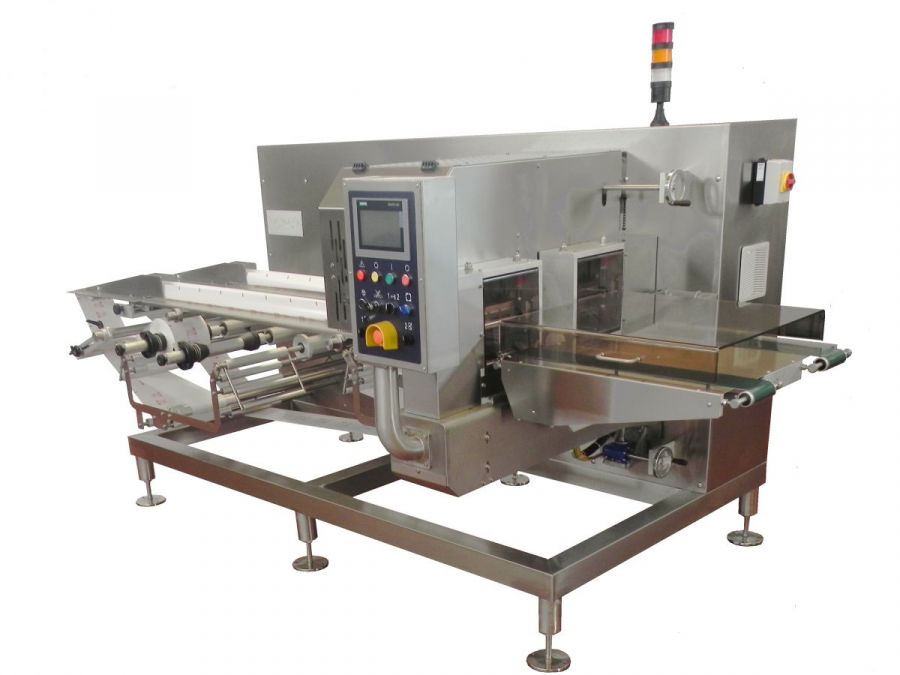

Double lane wrapping machine VW800 reverse wrapper Vojta Equipment Ice Com

Multilane wrapping machines combined high capacity with gentle handling of products, therefore are particularly suitable for products made by A-CX or A-DX lines.

Products are extracted by grippers from lamellas and directly laid down onto wrapping film – this means the product is not touching any machinery part or other equipment – ensuring highest hygiene standards.

Another benefit is that foil pull is low, which means thin foil could be used. This saves on packaging costs, as well as enabling longer runs between reel changes.

Multilane wrappers are also very suitable for multipack production, with possibility to pack 2/3/4 different kinds of product same time and further load to multipacks.

Features of W800

  • heavy duty, reliable construction
  • slow motion of foil
  • enhanced hygiene
  • PIP – picture in place function
  • hot and cold sealing
  • outlet conveyor for product discharge
  • short change-over time from one product to other

Capacity

  • W800     2 rows    up to 12 000/h
  • MLW6    6 rows    up to 18 000/h
  • MLW8    8 rows    up to 24 000/h
  • MLW9    9 rows    up to 27 000/h

Actual capacity will depend upon the type and size of the product, paper/foil quality and the transfer robot infeed system chosen.

Optional accessories:

  • automatic reel splicer
  • ink jet data printing
  • no product no bag function
  • connection conveyors for manual packing to cartons (3 level packing conveyor as standard)
  • connection conveyors for automated packing to cartons
