Single-lane Wrappers

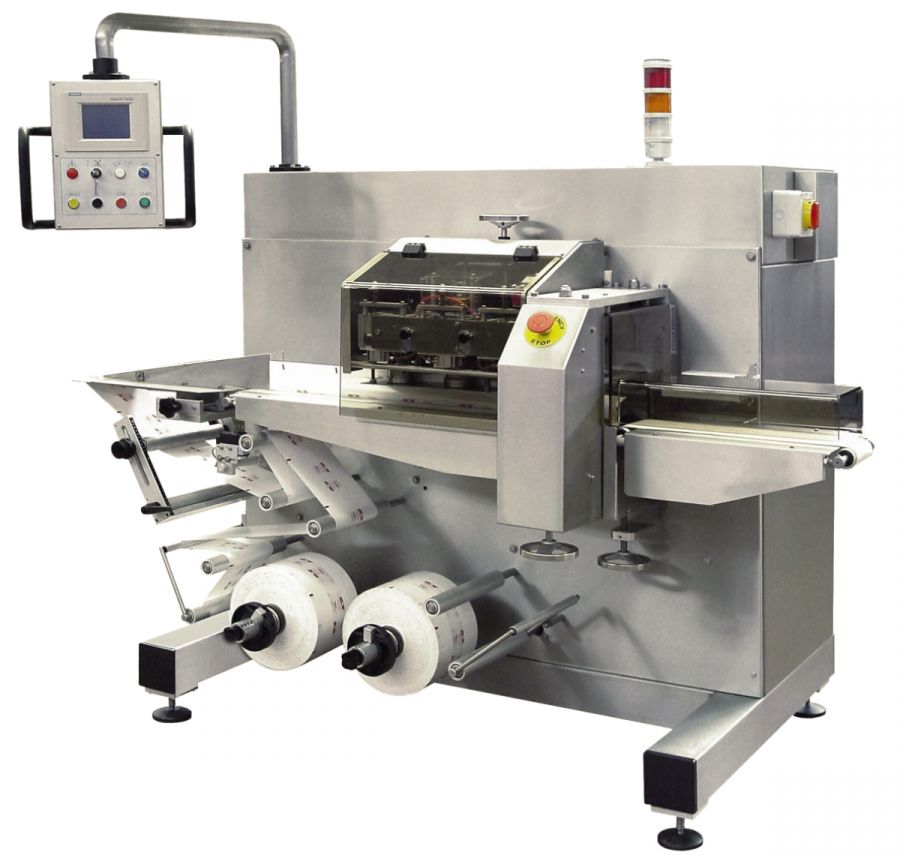

W400 top seal wrapping machine:
Fully automatic wrapping machine for all kinds of ice cream products – can be added to any kind of extrusion or molding line.
As a system with product directly laid down onto wrapping film (reverse wrapper) - without coming into contact with any machinery part or line component – W400 is ensuring highest hygiene standards.
W400 wrapping machine is distinguished by its reliability, performance and simplicity in its use and maintenance.
Completely managed by brushless servo motoe controlled by axes controller.
Manufactured in stainless steel, coated steel and anodised aluminium, it is able to work with films in biorientate polypropylene, coextruded and/ or lacquered, several coupled materials, hot sealing or cold having thickness 20 up to 40 μm, neutral, continuous printing or with picture in place.
Features of W 400
- double reel holder
- servodriven sealing rollers with temperature electronic thermoregulator for foil sealing
- servodriven cutting jaws with temperature electronic thermoregulator for foil cutting
- PIP – picture in place device
- hot and cold sealing
- no need for folding box
- outlet conveyor for wrapped product discharge
- double reel holder
- simple cutter jaws
- integrated folding box
- brushless servo motor
Optional accessories
- pocket conveyor placed at the right angle of wrapping machine with upper chain for product transfer
- no product no bag function
- misplaced product function
- automatic reel splicer
- double cutter jaws
- rotating data printer
- embossing date coding

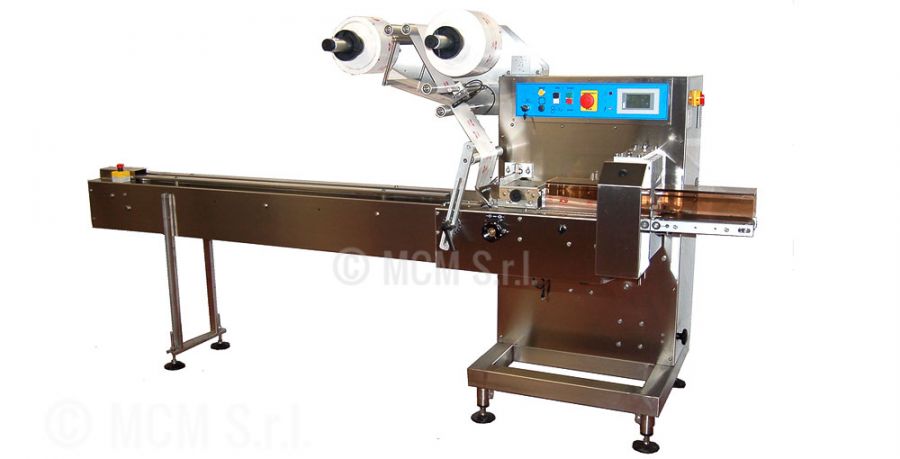

M230 wrapping machine is distinguished by its compactness, reliability, performance and simplicity in its use and maintenance.
It is also used as completion of automatic lines, considering that M230 with double cutter jaws is capable to rich up to 200 pcs/m.
Sealing rollers are standard fitted with Brushless servo motor, picture in place is automatic and integrated into the servo drive. It is also available with brushless servo motor on cutter jaws.
Manufactured in stainless steel, coated steel and anodised aluminium, it is able to work with films in biorientate polypropylene, coextruded and/ or lacquered, several coupled materials, hot sealing or cold having thickness 20 up to 40 μm, neutral, continuous printing or with picture in place.
Features of M230
- single / double reel holder
- simple cutter jaws
- fixed folding box
- picture in place device
- three pairs of sealing rollers motioned by Brushless servo moto
- tiltable first pair of sealing rollers
- mechanical cutting jaws speed variator
- AC motor controlled by inverter.
- digital thermostats
Optional accessories
- brushless servo motor on cutter jaws
- adjustable folding box
- automatic reel splicer for automatic change of wrapping film rollers
- double cutter jaws
- cutter jaws torque limiter
- automatic rollers releasing
- rotating data printer
- embossing date coding

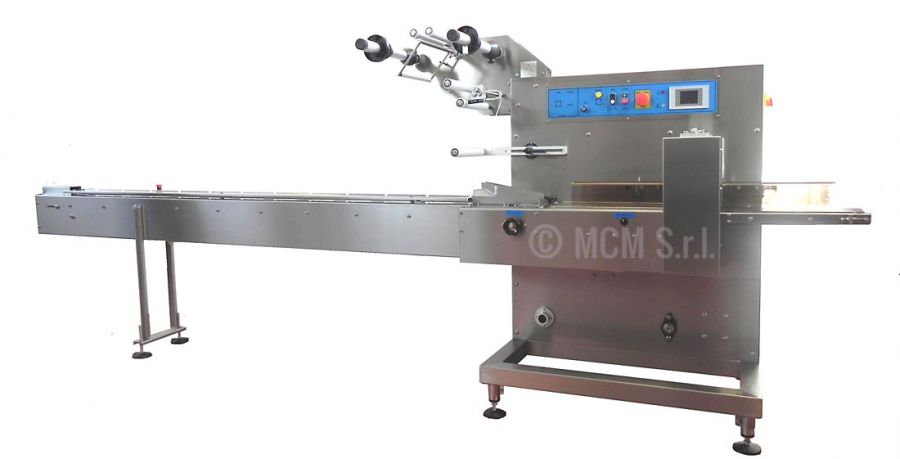

M100 simple and compact wrapping machine
Manufactured in stainless steel, coated steel and anodised aluminium, it is able to work with films in biorientate polypropylene, coextruded and/ or lacquered, several coupled materials, hot sealing or cold having thickness 20 up to 40 μm, neutral, continuous printing or with picture in place.
Features of M100
- single reel holder
- simple cutter jaws
- fixed folding box
- picture in place device
- two pairs of sealing rollers
- tiltable first pair of sealing rollers
- mechanical cutting jaws speed variator
- AC motor controlled by inverter.
- digital thermostats
Optional accessories
- pocket conveyor placed at the right angle of wrapping machine with upper chain for product transfer
- adjustable folding box
- double reel holder
- double cutter jaws
- cutter jaws torque limiter
- automatic rollers releasing
- rotating data printer
- embossing date coding
